There was a recent discussion on the internet about how bad the plans are that come with the baffle kit. I personally didn't think that they were all that bad but I think that it has to do more with being able to visualize how they are supposed to look when finished as opposed to the quality of the plans.

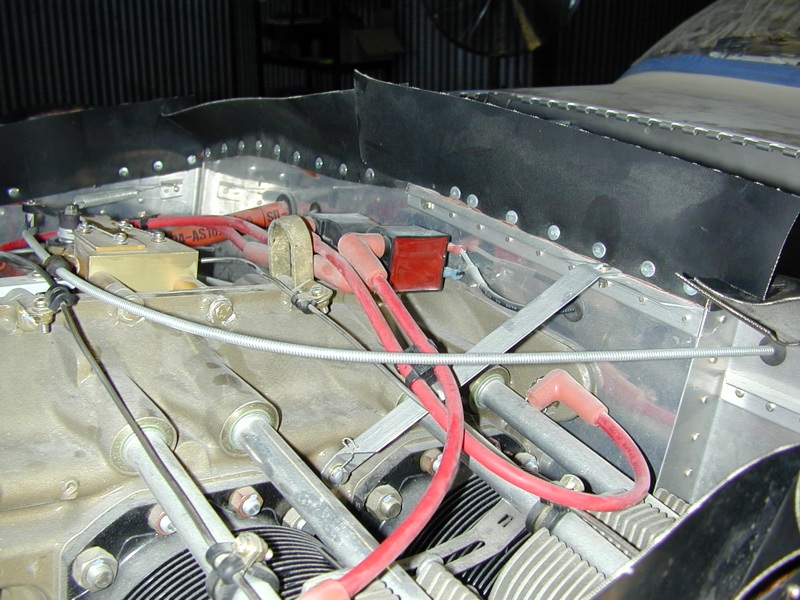

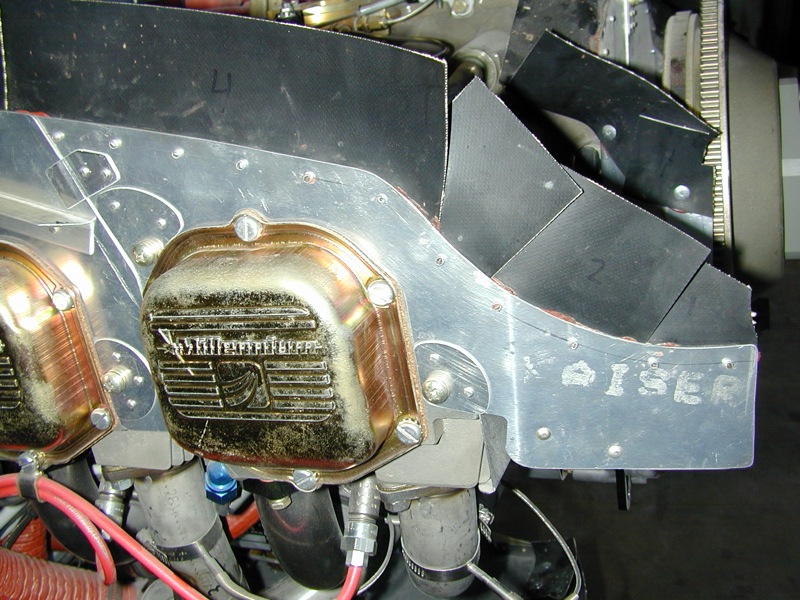

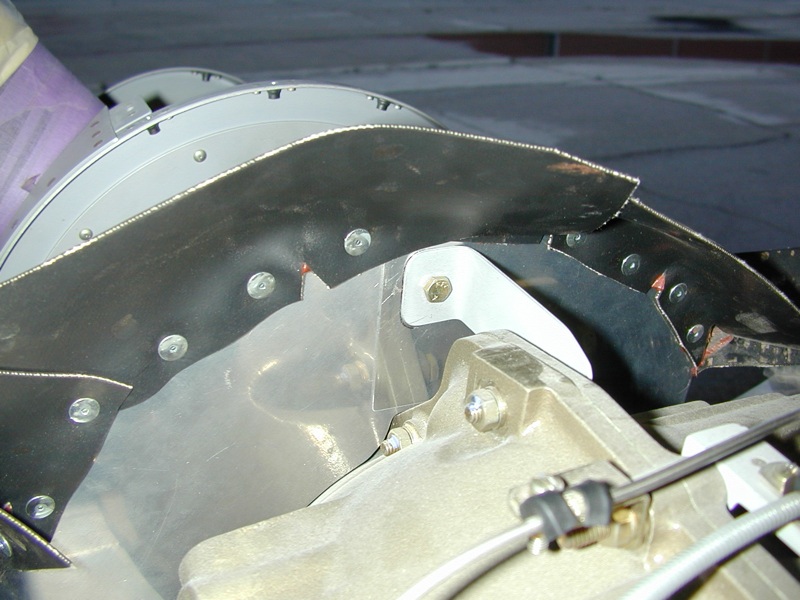

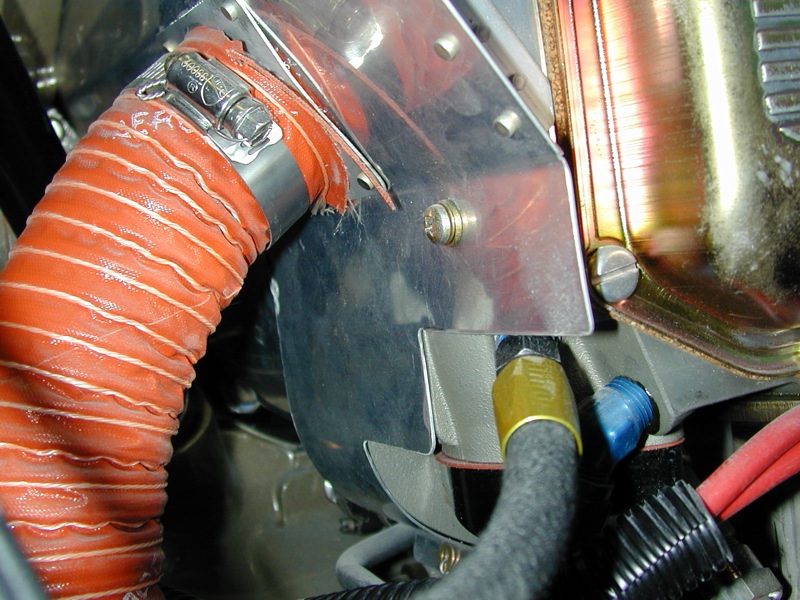

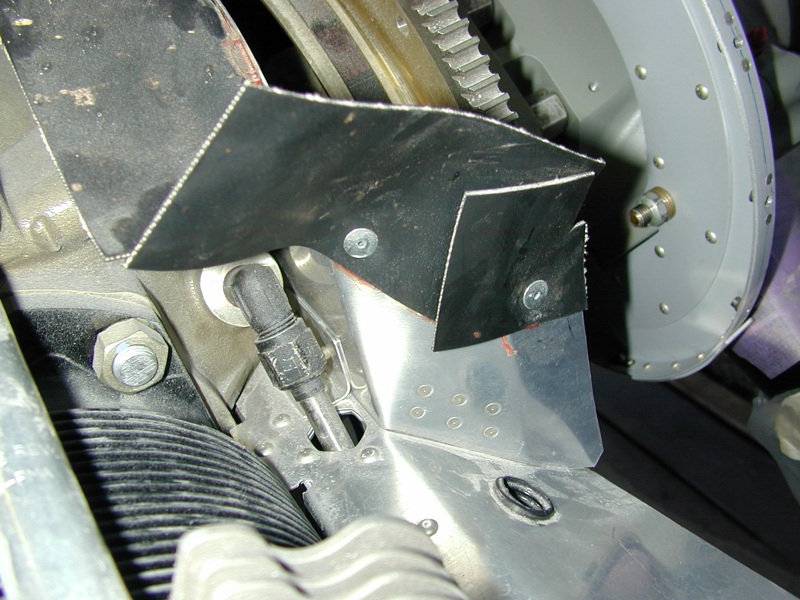

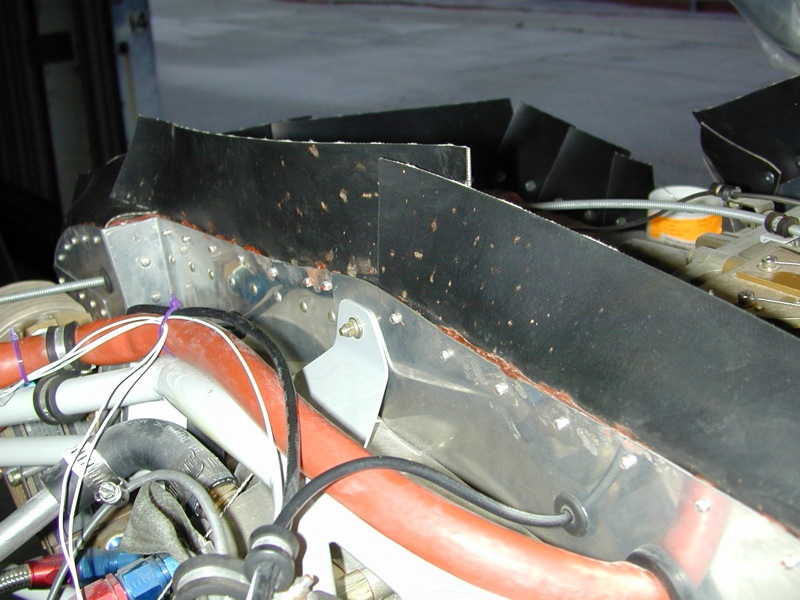

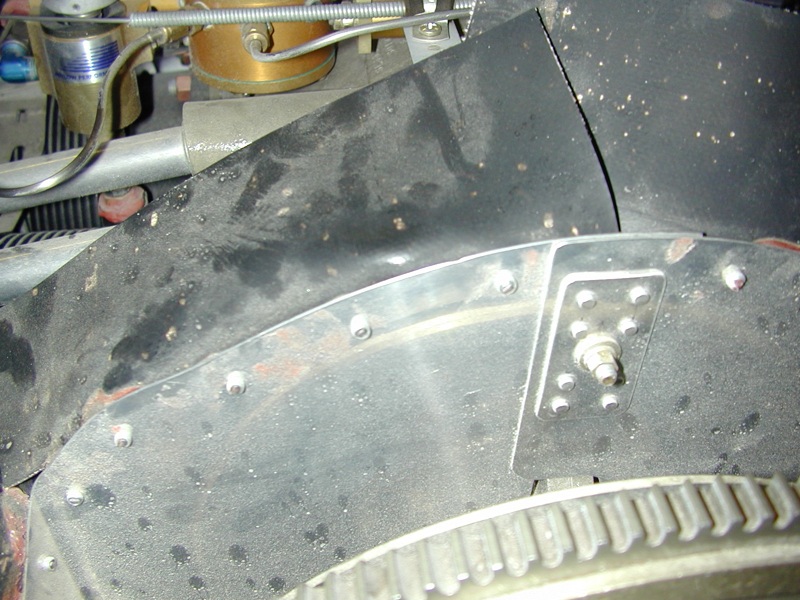

So I decided to take a bunch of pictures of my baffles and hang them out in the hopes that it will help someone. I know that I had not sealed all the little gaps with RTV yet when these pictures were taken but rest assured that I didn't fly it like that.

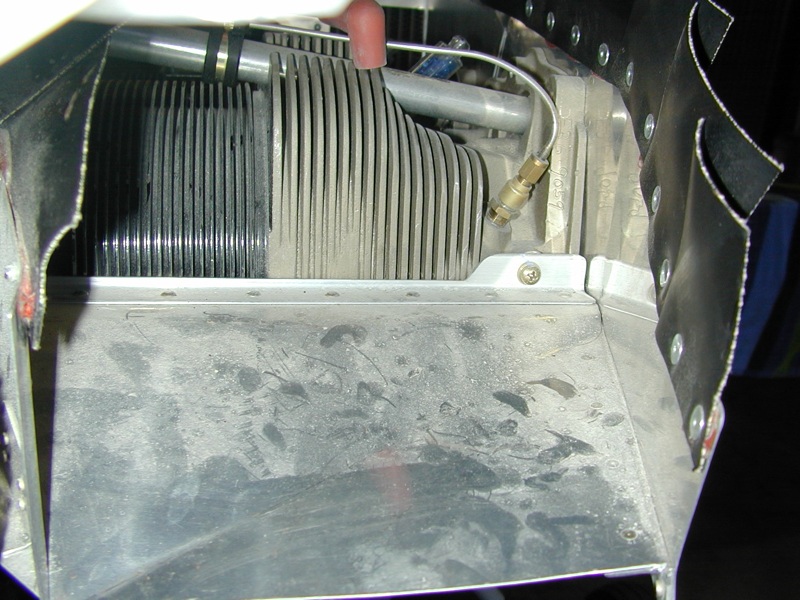

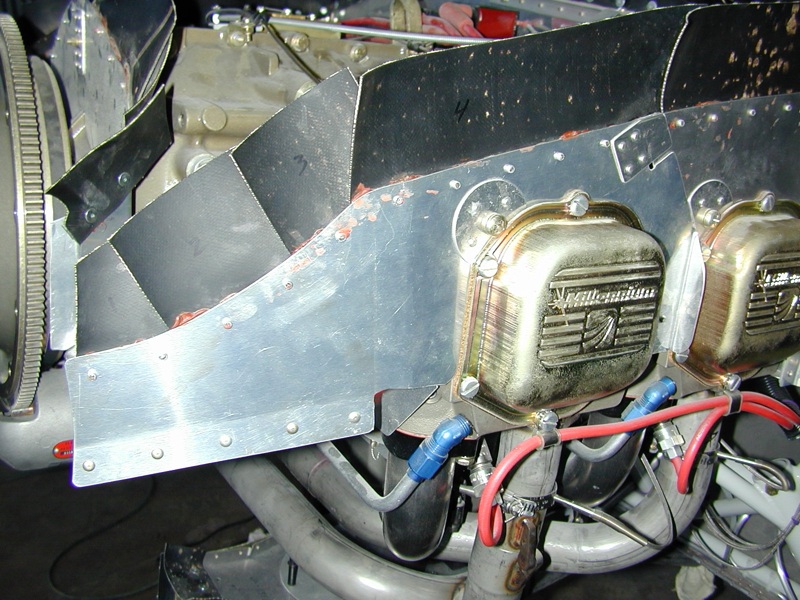

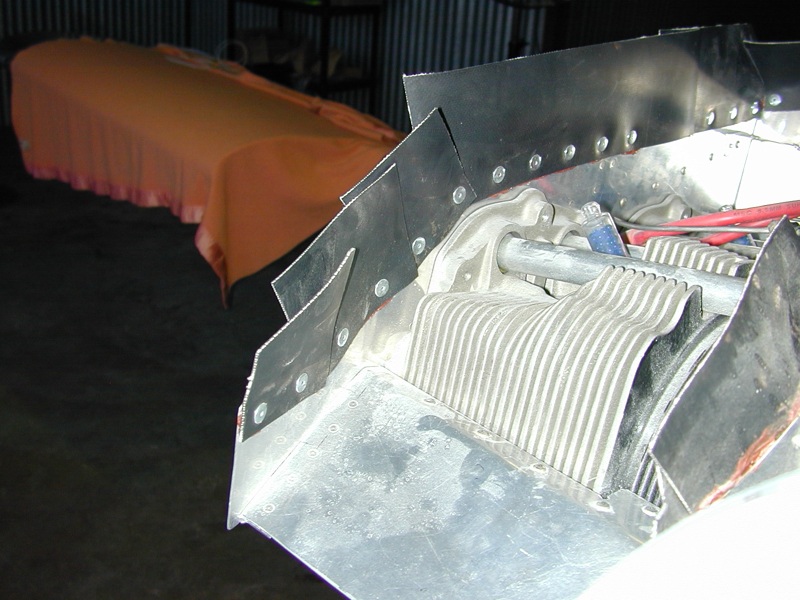

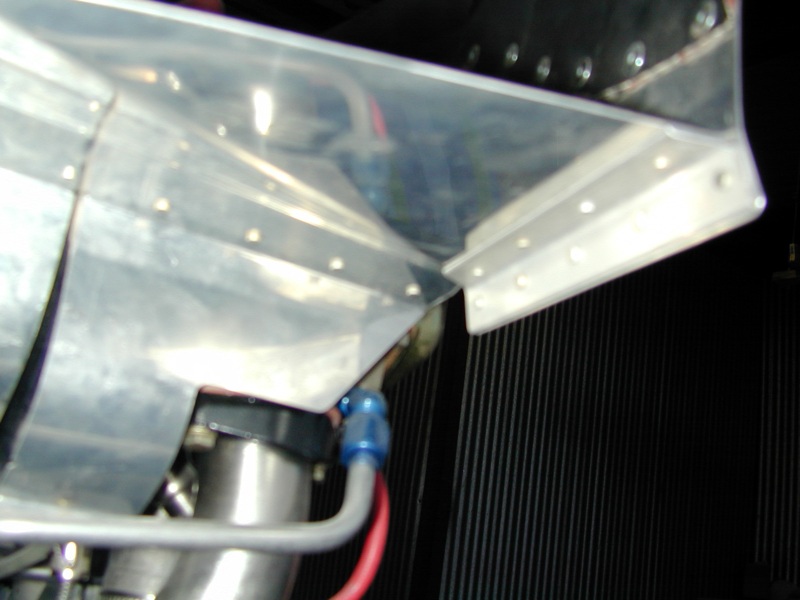

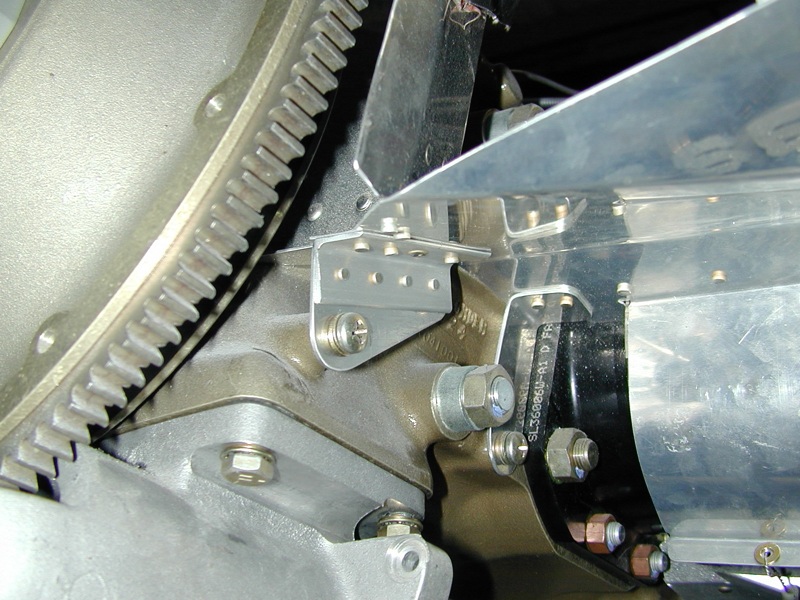

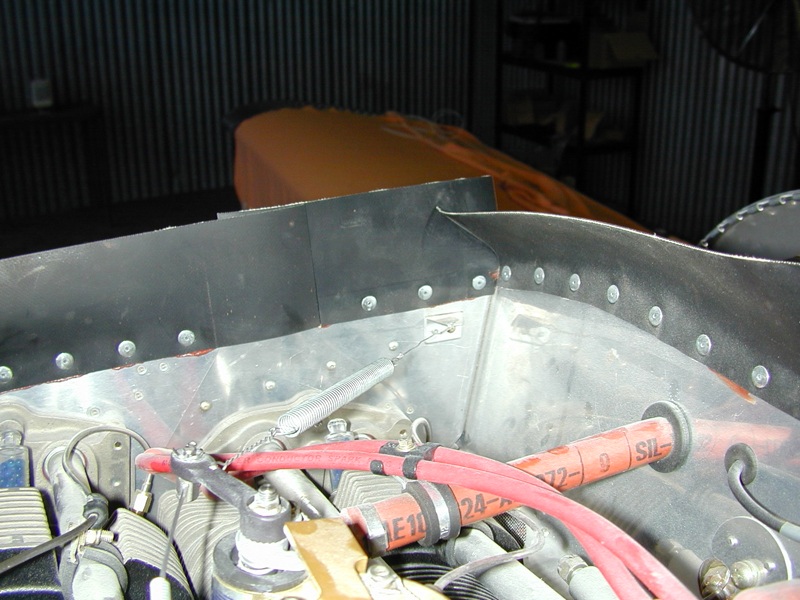

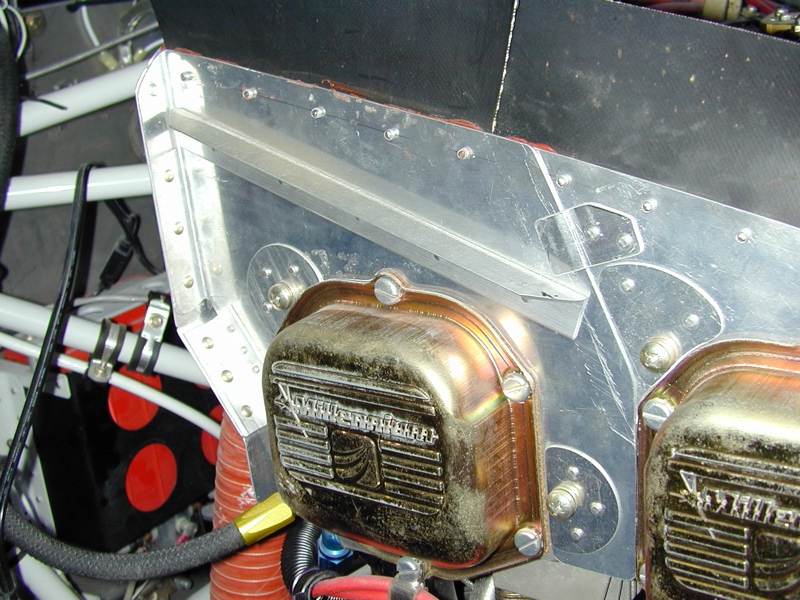

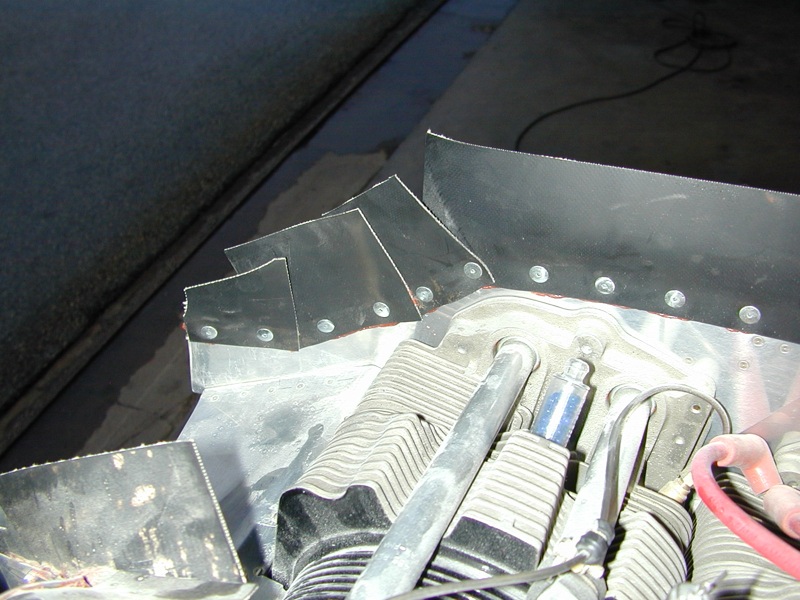

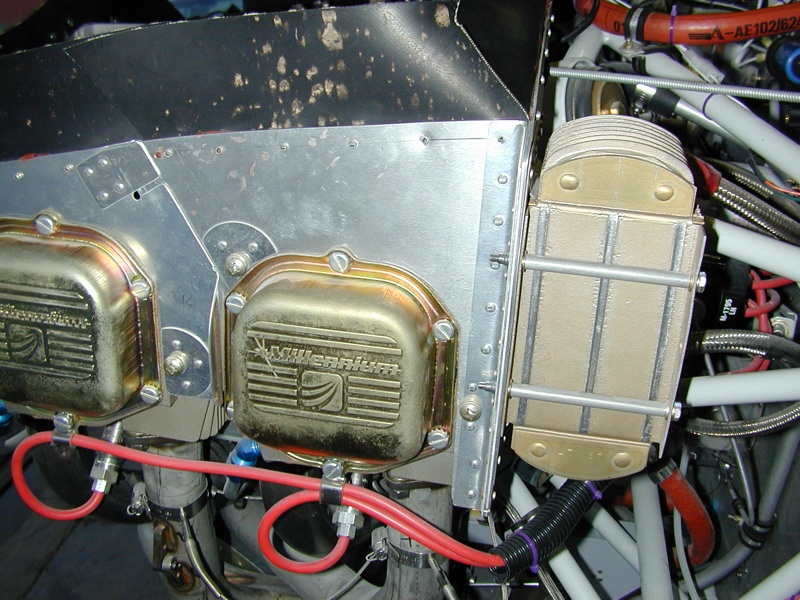

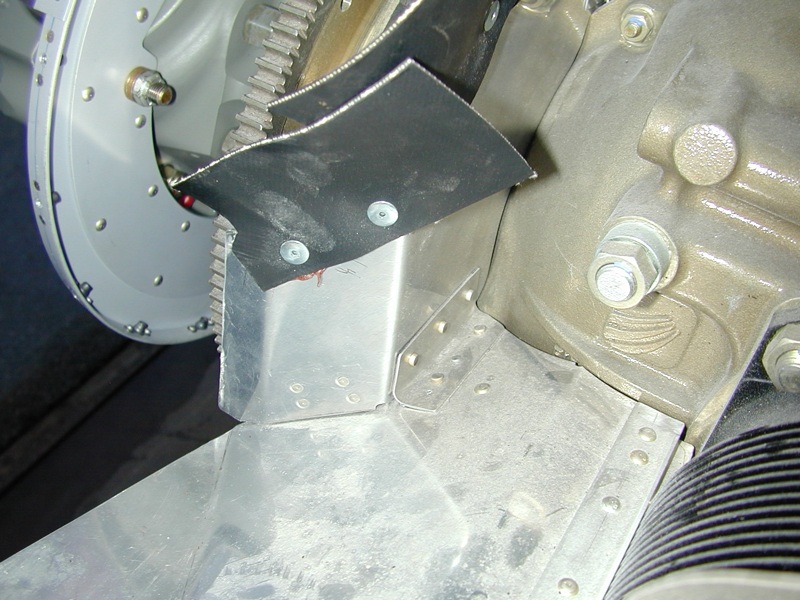

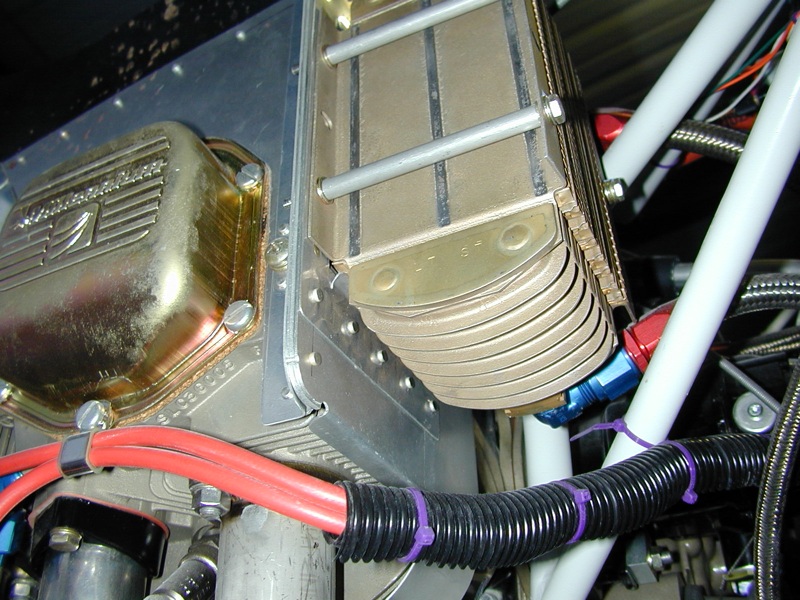

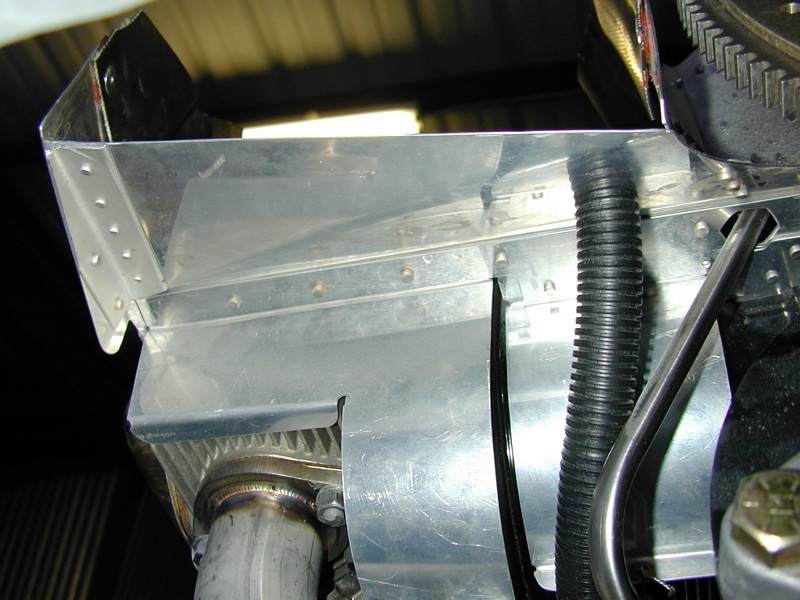

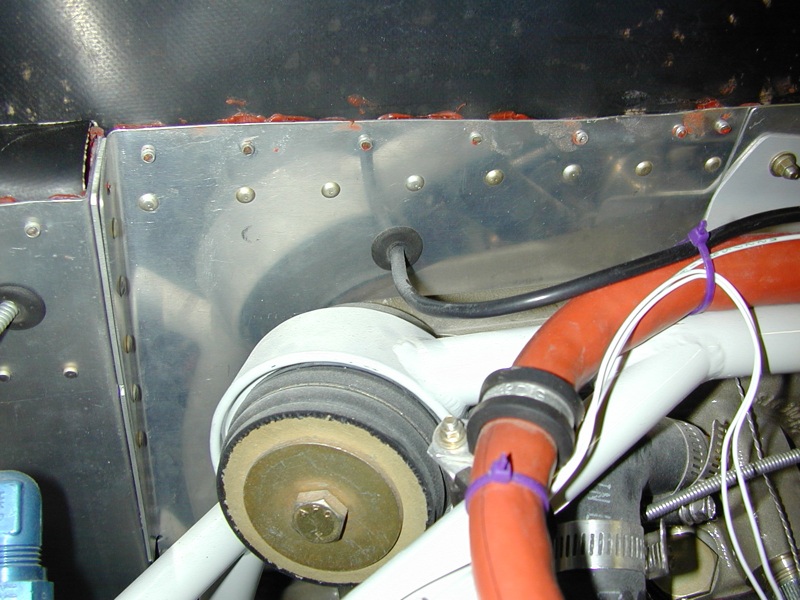

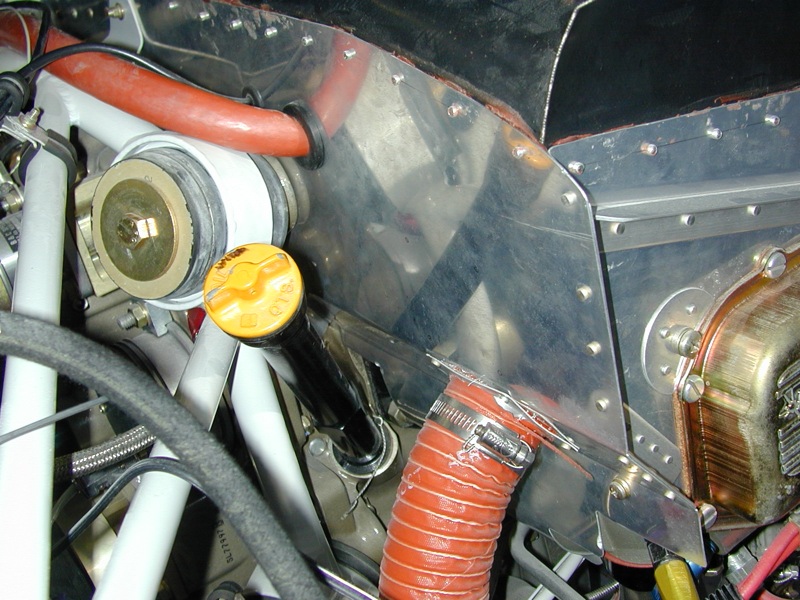

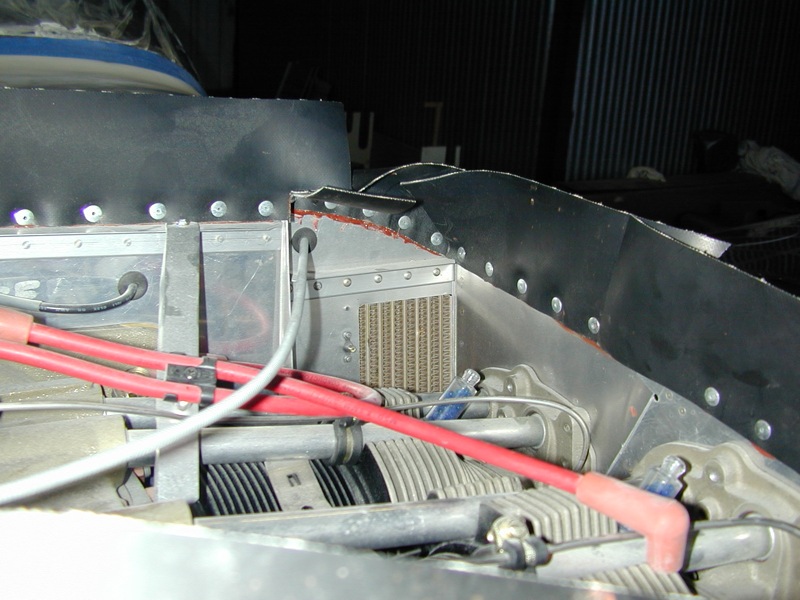

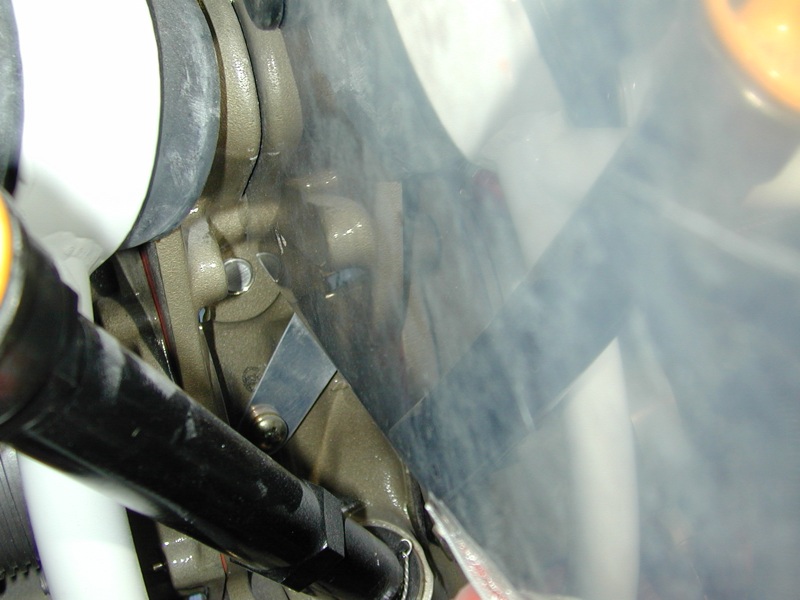

Baffle 1 Baffle 2 Baffle 3
Baffle 4 Baffle 5 Baffle 6
Baffle 7 Baffle 8 Baffle 9
Baffle 10 Baffle 11 Baffle 12
Baffle 13 Baffle 14 Baffle 15
Baffle 16 Baffle 17 Baffle 18
Baffle 19 Baffle 20 Baffle 21
Baffle 22 Baffle 23 Baffle 24
